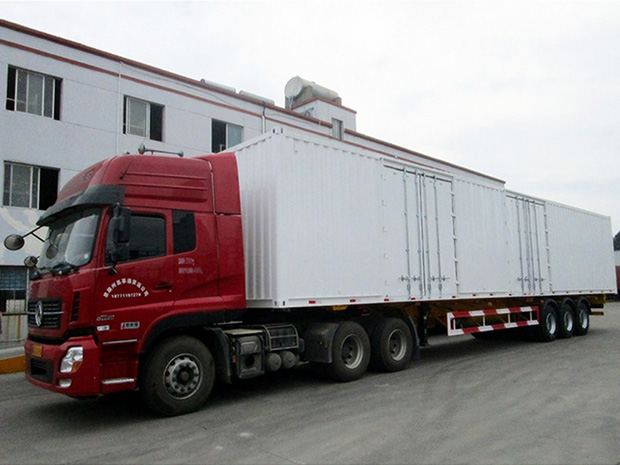

Container Semi Trailer

Superior Quality and High Reliability

The exterior and interior of the vehicle are all refurbished

Fastest Possible delivery; on-time delivery according to customer needs

Cost-effective

Technical characteristics

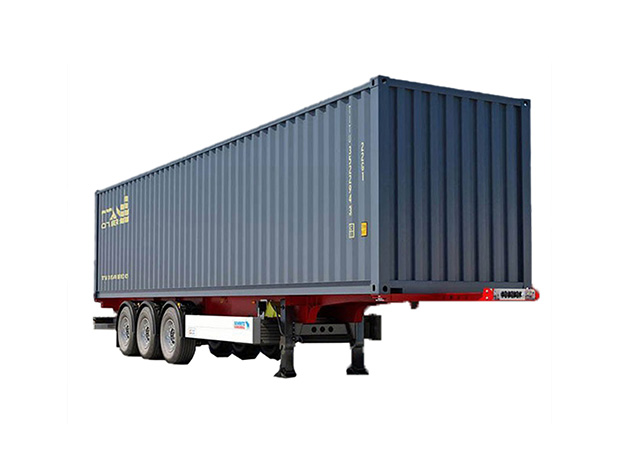

Semi-trailer whose cargo part is a container structure. Mainly used in logistics systems supporting ships, ports, routes, highways, transfer stations, bridges, tunnels, and multimodal transport. It is specially used for the transportation of various containers, which is convenient for filling and emptying of goods and meets the individual needs of customers.

Box shell uses the corrugated steel plate (anti-wave) or flat type steel plate with high intensities. The interior part adopts a skeletonless structure, maximizing the carrying capacity. X-shape tension brace fixed the box shell a very strong unit.

The side guard adopts close-ended design to reduce the crosswise risks effectively, and energy consumption, running with high speed. And reasonable trailer accessories were placed at the rear guard box for convenience.

Performance Parameter

Total Weight

39300 kg

Rated Load

31000, (30800) kg

Tare Weight

8500,8300 kg

Wheel Base

7100+1310+1310 (mm)

Tyre Specifications

11.00R20 12PR  12R22.5 12PR(Vacuum tyre or rail tyre)

No. Of the Tyres

12

Axle Brand

FUWA (BPW optional)

No. Of the Axles

3

Axle-load

24000 kg

Pieces of leaf-spring

10 (8) (4)

Suspension

is constitute by tandem steel plate spring and bearing legs.

Departure Angle

14.2

Front/Rear Overhang

2160 mm

Outside Dimensions (LxWxH)

13000X2550X3850 3650,3450 (mm)

Interior Dimensions (LxWxH)

12800X2350X2200 2000,1800 (mm)

Material of the Main Beam

Q235A manganese plates, automatic submerged arc welded

Brake System

ABS (optional )
