Completely refurbished just like brand-new, and painted with the best paint; All wearing parts are being replaced.
Fastest Possible delivery; on-time delivery according to customer needs
Superior Quality and High Reliability
Cost-effective

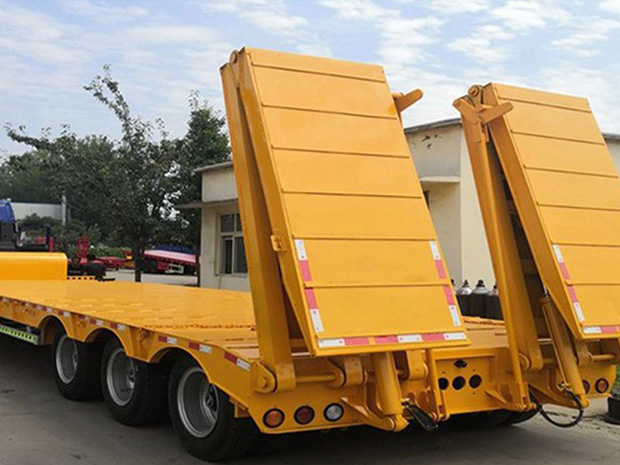

Low Bed Semi Trailer, as known as low bed trailer, lowbed trailer, lowboy trailer. Our lowbed trailer choose Q345B carbon
high-tensile steel material. We adopt world famous brand of parts, like JOST, WABCO braking valve etc. We can also produce the semi trailers like flatbed trailer, Skeleton trailer, dump semi trailer etc. trailers will be inspected before painting ensure every detail in good condition. We are manufacturer, provide customized service, design as the customers’ every request. Our design ability has reached a domestic first level, rich production experience, short delivery time. Our company has passed ISO9001 quality system certification, production of lowbed trailer in China has already occupied a very high market share in Africa and Russia. Our phone service 24 hours service for you.
| Dimension(Lx W x H)(mm) | 13000*2500*1750(As arranged) |
| Wheelbase(mm) | 8580+1310+1310 |
| Curb Weight(KG) | 8000 |
| Loading capacity(KG) | 60000 |
| Axle Brand | FUWA or BPW 13/16/20Ton Axle |
| Axle Number | 3 |
| Rim type | 9.0 22.5 x12 pcs |
| Tyre type | 12.00R20 x 12 pcs |
| Suspension system | Mechanical suspension/ pneumatic suspension |
| Steel Spring | 10/10/10 |
| Frame | The height of the beam(Carling ) is 500mm,upper plate is18mm,down plate is 20mm,middle plate is 14mm.according to the buyer’s requirement |
| Platform plate | 3-8mm Diamond Plate |
| Traction Pin | JOST 90# (3.5'') or 50#(2.0'') |
| Landing Leg | 28T load landing leg |
| Stair Folding Rear | Two pieces |
| Ramp | The ramp is powered by a hydraulic pump or manual operation |
| Brake system | Dual Line braking system |
|
| Four double and two single chamber , |
|
| Valve WABCO Brand |
| Electrical system | 24V,7 Pole plug |
|
| Tail lamp with turn signal, brake light & reflector, side lamp etc. |
| Tool box | One pieces(1000*500*500mm),equipped with 1 unit tire spanner,1 unit gudgeon sleeve and 1unit cranking bar |
| Painting | Color by customer’s requirement |
| Packing | Polish with wax before shipping |
