Fastest Possible delivery; on-time delivery according to customer needs
Superior Quality and High Reliability
Multi-application
Cost-effective

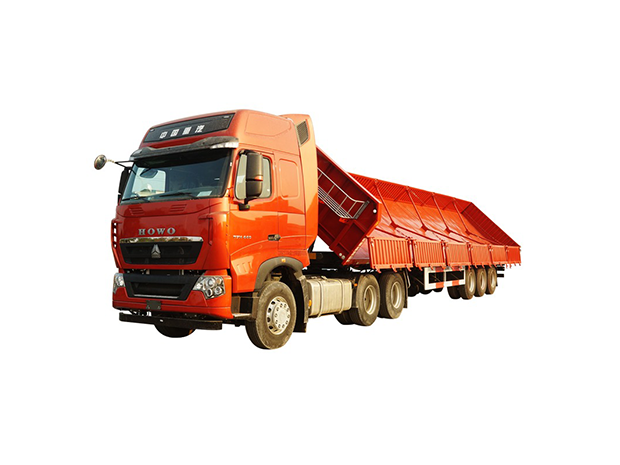

Side Dump semi trailer mainly used in the transportation of earth, ore, building materials and other bulk cargo.With the hydraulic dumping system,it can realised self dumping saving both time and effort. Side dump type semi trailer can discharge the cargo through the dide of the box.This special design are aim to heavy duty vehicle,it can make sure the safety when discharge.
*High quality steel makes trailer itself lighter but strong enough for heavy cargos, so that transport company can load more tons.
*The most skilled workers make welding of this dump trailer more frequent and strong.
*Dump box dimensions and U-shape, box thickness, HYVA hydraulic cylinder and optional accessories(two pieces spare tire carriers, water tank, fuel tank, etc.) are all cutomised by different cargo needs which build modern
| Side dump semi trailer | |
| Size | 11000*2500*3500 (mm) |
| Side board height | optional |
| Payload | 30000KG-100000KG volume optional |
| Main beam | Heavy duty I beam. |
| Side wall | 3mm |
| Floor | 4mm |
| Cylinders | 5+1 |
| Axles | 3 * 13ton capacity (Brand optional) |
| Suspension | Mechanical suspension (Air suspension optional) |
| Leaf spring | 10pcs |
| Tire | 12R22.5 12pcs (Other size optional) |
| Rim | 9.00-22.5 12pcs (Other size optional) |
| Kin pin | 2’’/3.5’’ bolt type |
| Landing gear | 28 Ton two speed |
| Braking system | Double air chamber ,brake valve,40L air tanks ;ABS optional |
| Electrical | LED light , 7 ways ,24V |
| Painting | Blasting and clean rust,1 coat of prime painting ,2 coat of finish painting |
