Superior Quality and High Reliability
24 Months Product Warranty
Tires can be changed with new one according to customer needs.
Fastest Possible delivery; on-time delivery according to customer needs

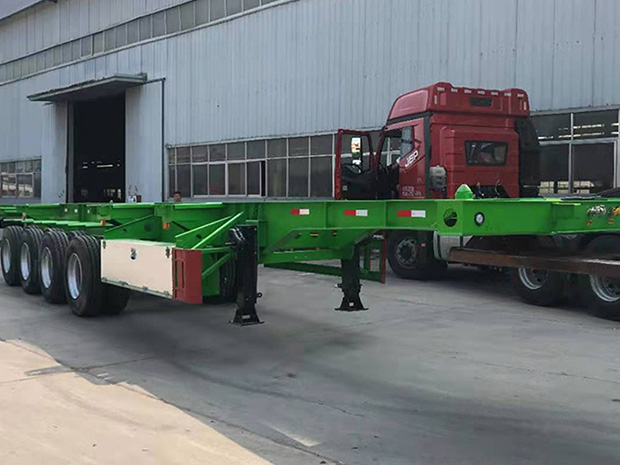

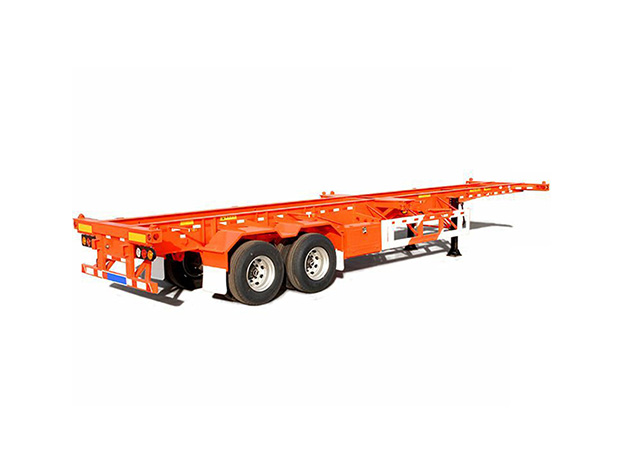

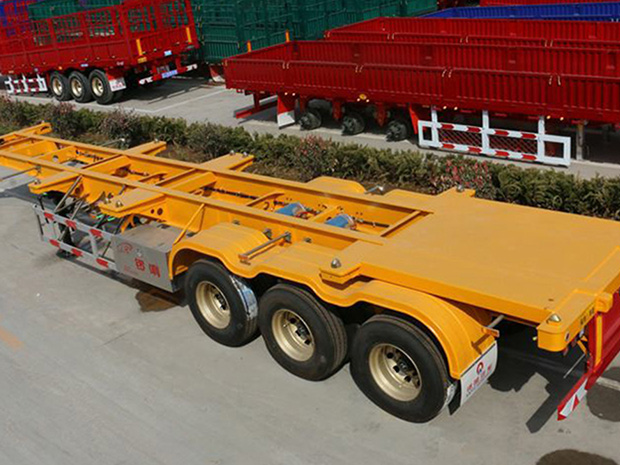

Skeleton container trailers are generally used for transporting ISO containers in port, shipyard, routes, bridges, tunnels, transfer stations, supporting multimodal transport logistics systems.
The skeletal trailer has many configurations of different sizes: 20ft skeletal trailer, 40 ft skeletal trailer chassis, 45 ft container skeletal trailer, ISO intermodal container.
We produce semi-trailers with various loads, which can be customized according to needs.Color, size, structure can be designed.
|
Capacity |
20FT Container chassis Semi Trailer |
40FT Skeletal Container chassis Trailer |
|
Dimension |
7500*2500*1550mm |
12500*2500*1550mm |
|
Twist Lock |
4/8 set ISO Standard |
12/14 set ISO Standard |
|
Suspenssion |
Mechanical / Air / Bogie |
Mechanical / Air / Bogie |
|
Axle |
2/3 axles BPW/FUWA/PDME |
2/3/4 axles BPW/FUWA/PDME |
|
Rim |
8/12 pieces 9.0-22.5 Steel/Aluminum |
8/12/16 pieces 9.0-22.5 Steel/Aluminum |
|
Tire |
8/12 pieces 12R22.5 |
8/12/16 pieces 12R22.5 |
|
Chamber |
4/6sets T30/30 |
4/6/8 sets T30/30 |
|
Brake Valve |
WABCO |
|
|
Main Beam |
"I" Section 500mm hieght Q345/T700 matirial |
|
|
Air Tank |
28L |
|
|
Brake Pipe |
Nylon Wire Pipe |
|
|
Support Leg |
28T Lifting JOST/YAHUA |
|
|
Kingpin |
2"(50mm)/3.5"(90mm) JOST |
|
|
Lights |
12v/24v LED Waterproof |
|
