Superior Quality and High Reliability
Fastest Possible delivery; on-time delivery according to customer needs
Completely refurbished just like brand-new, and painted with the best paint; All wearing parts are being replaced.

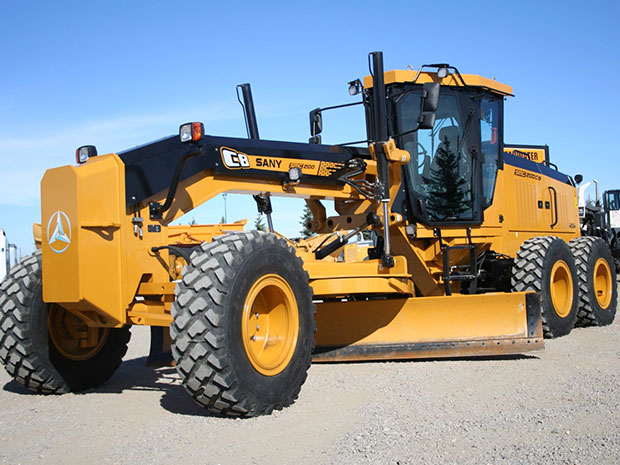

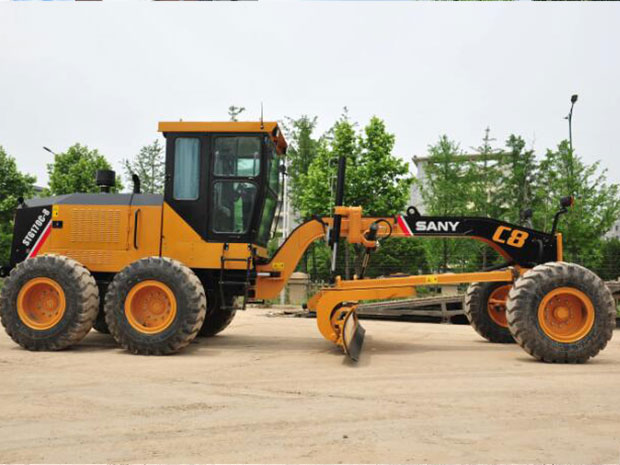

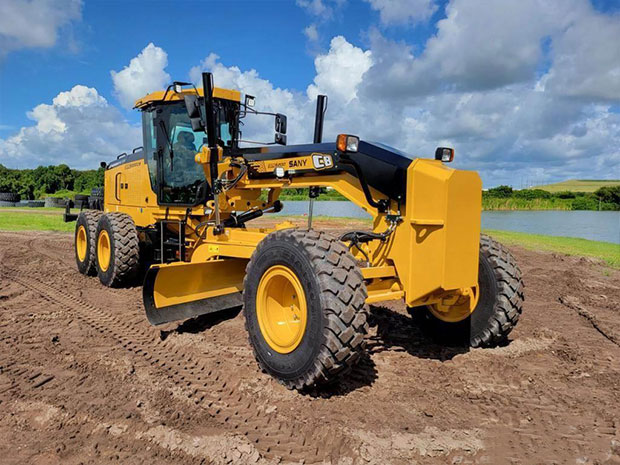

SANY Motor grader is mainly used for shaping and leveling operations in the construction process of earthwork, and plays a vital role. Motor graders are the main machinery used for shaping and leveling operations in earthwork, and are widely used in large-area ground leveling operations such as highways and airports.
The articulation frame is adopted and matched with the steering of the front wheel, With small turning radius,maneuvering and lexible.
The rear axle is the three-section driving axle which is provided with the NO-SPIN self-locking differential mechanism.
The front bulldozing plate, rear scarification device,front scarification harrow and automatic leveling device can be added .
Front dozer and five shank ripper as optional.
| Engine | |
| Model | Cummins 6BTA5.9 |
| Rated power | 132KW |
| Rated speed | 2100rpm |
| Torque conveter type | 3 elements, single stage |
| Torque ratio | 2.52 |
| Gearbox type | Power shift |
| Drive type | Dual action cylinder |
| Drive type | Four wheel drive(6×4) |
| Front axle ground clearance | 610mm |
| Drive axle | Imported No-SPIN differential |
| Control system | Hydrostatic drive system |
| Hydraulic pump | Gear pump |
| Control valve | HUSCO |
| Control pressure | 18MPa |
| Hydraulic oil cylinder | HYUNDAI |
| Max. tractive force | 78.5KN |
| Ground penetration | 535mm |
| Blade width | 3660mm |
| Operating weight | 14500kg |
| Dimensions | |
| Overall length | 8630mm |
| Overall width(wheel outside) | 2600mm |
| Overall height | 3370mm |
| Wheel base | 6100mm |
| Front tread | 2120mm |
| Rear tread | 2120mm |
| Tyre size | 17.5-25 |
| Fuel tank | 350L |
| Engine crank case | 27L |
| Hydraulic tank | 70L |
| Gear box | 45L |
| Rear axle | 18L |
| Balance box | 42L(each) |
| Worm gear case | 3L |
