Fastest Possible delivery; on-time delivery according to customer needs
Tires can be changed with new one according to customer needs.
Superior Quality and High Reliability
Cost-effective

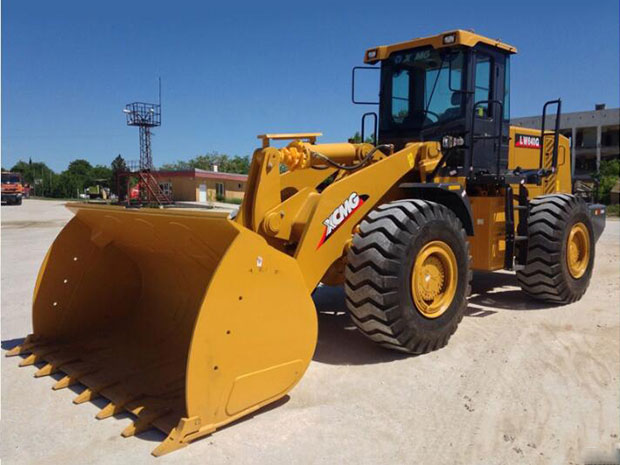

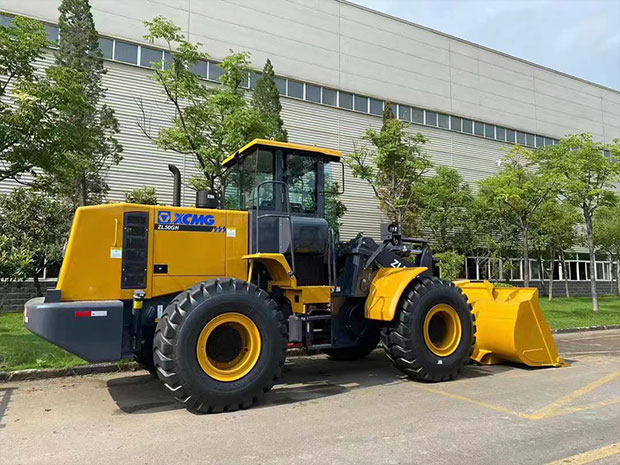

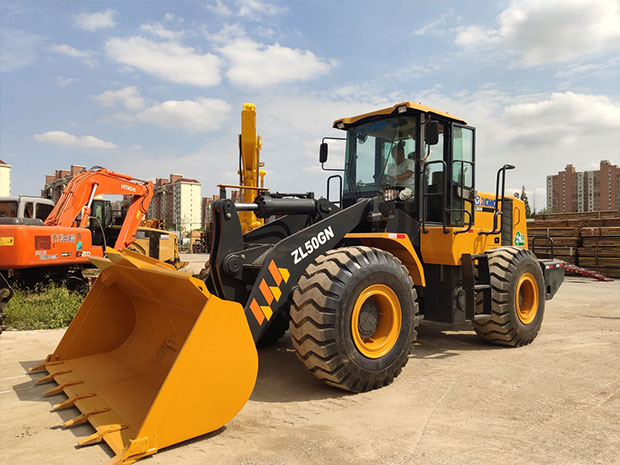

The loader is a machine equipped with a bucket working device on a wheeled or tracked chassis. Mainly used for loading and handling loose materials.
As an outstanding representative of the industry's super-heavy-duty models, XCMG loader boasts remarkable advantages in terms of “High energy-conservation, efficiency, reliability, and comfort” compared with industry’s like products and is extensively applicable for ports, mines, engineering constructions, and logistics,earth- moving projects, aggregate yards, municipal constructions, and other bulk material transports.
|
Description |
Unit |
Parameter value |
|
Rated operating load |
kg |
3000 |
|
Bucket capacity |
m³ |
1.5~2.5 |
|
Machine weight |
kg |
10900±200 |
|
Dump clearance at maximum lift |
mm |
2770~3260 |
|
Reach at maximum lift |
mm |
1010~1210 |
|
Wheel base |
mm |
2900 |
|
Tread |
mm |
1850 |
|
Height of hinge at maximum lift height |
mm |
3830 |
|
Working height(fully lifted) |
mm |
4870 |
|
Max.breakout force |
kN |
130 |
|
Max.horse power |
kN |
95 |
|
Hydraulic cycle time-raise |
s |
5.4 |
|
Total hydraulic cycle time |
s |
9.3 |
|
Min. turning radius over tyres |
mm |
5170 |
|
Articulation angle |
° |
38±1 |
|
Gradeability |
° |
28 |
|
Tyre size |
|
17.5-25-12PR |
|
Overall machine dimension L×W×H |
mm |
7245×2482×3320 |
|
Model |
|
WP6G125E201 |
|
Emission standards |
|
Emission 2 |
|
Rated Power/Speed |
kW/rpm |
92/2000 |
|
Fuel Tank |
L |
170 |
|
Hydraulic Tank |
L |
175 |
